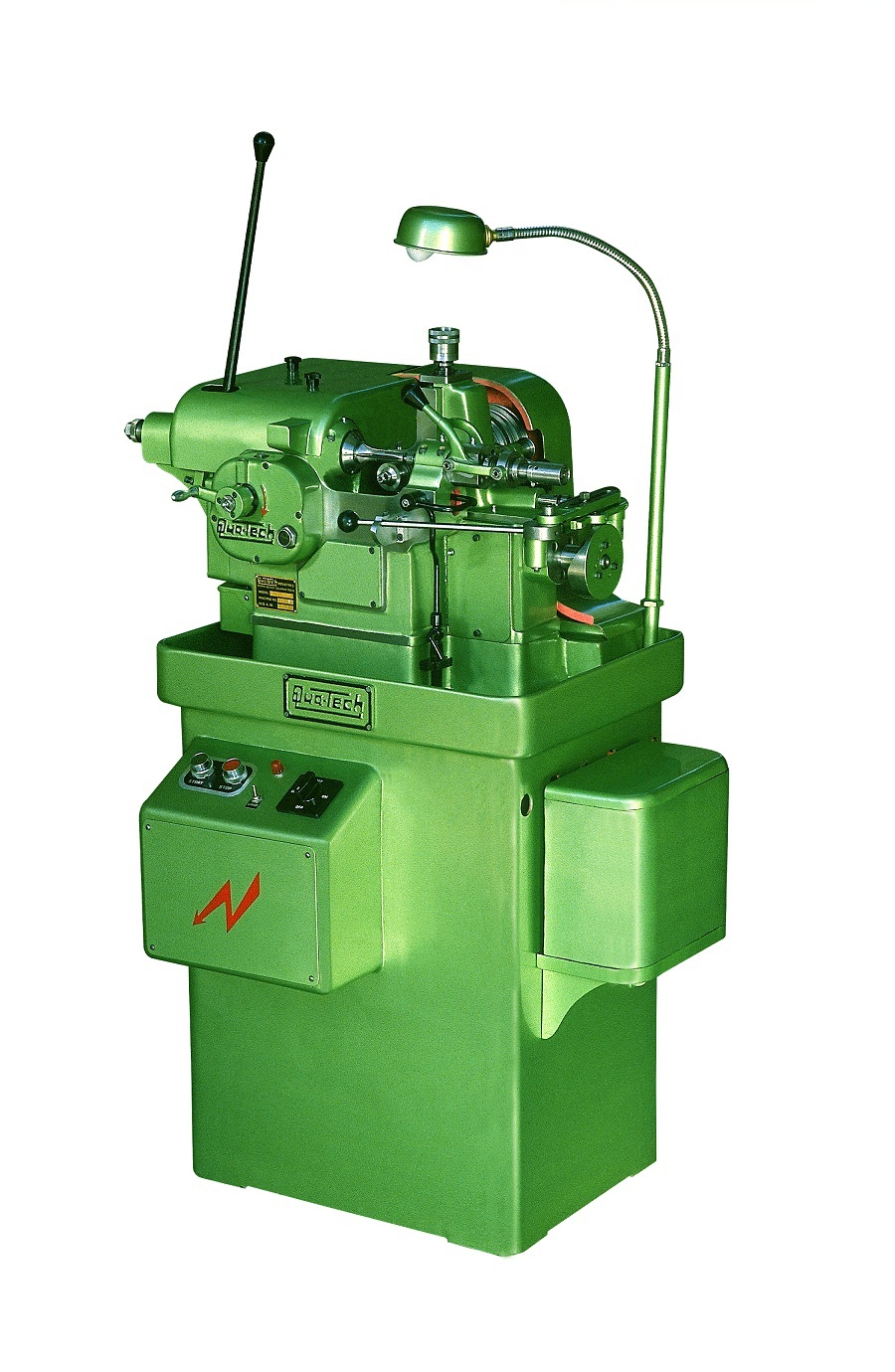

Auto Index Slotting Machine Model:- SM-1
| Max. Job Dia. | 60mm by 38 mm Dia. Cutter |
| Width of Job | max. 100 mm |
| Length of Milling | max. 50 mm |
| Std. Divide by Auto Index | 3,4,6,8,12,24 and any other |
| Cutter Dia. | 25 mm to 60 mm |
| Work Spindle Bore | 16 mm |
| Cutter Spindle Size | 8,10,12 and 16 mm |
| Cutter Spindle RPM | 700 to 1850 by 8 step |
| Feed | 13 Step |
| Tail Strock Quill Movement | 65 mm |
| POWER | 0.8 KW. , 3 Phase |
| FLOOR SPACE & WEIGHT | 600x960x1480mm, 300Kg |
