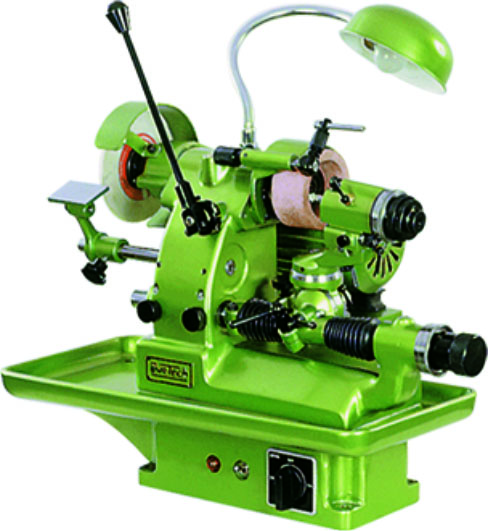

Engraving Tool & Drill Grinder Model:- DG - 2
| Max. Cutter Shank Dia. | 10 mm with Std. Collet |
| Max. Radius, Ground | 20 mm |
| Max. Relief Angle, Ground | 45 degree |
| Cutter head std. | 12 Index |
| Grinding Cup Wheel Size | 100 Dia. x 50 Width x 20 Thick mm |
| Spindle Speed | 4500 RPM |
| Power | 0.37 KW. 3 ph. (Single phase on request) |
| Dimension & Weight | 410 x 450 x 500 mm , 100 Kg. Approx. |
