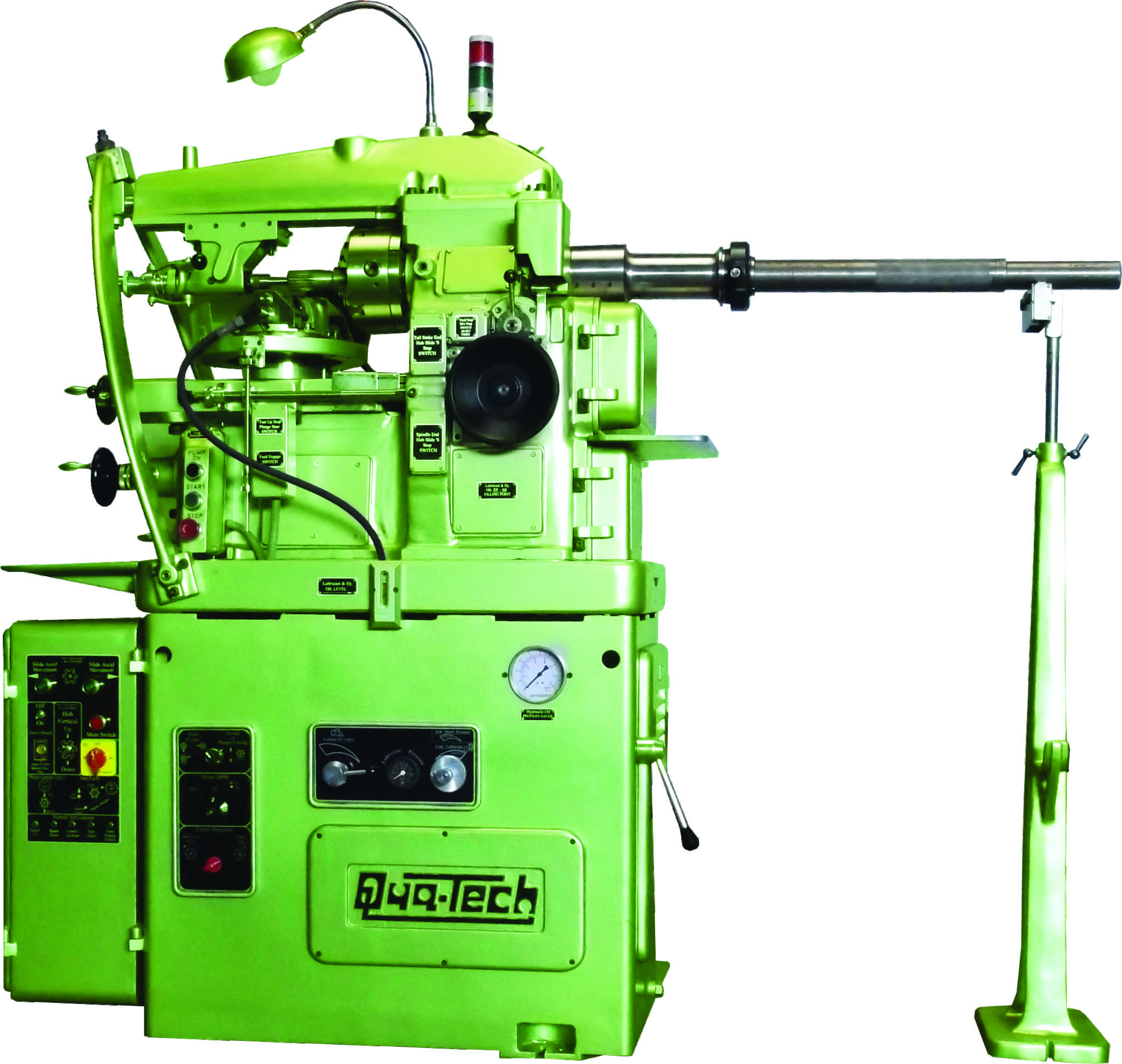

Universal Spline Hobbing Machine Model:- USH - 150

USH-150 M/c. Specification
Max. Gear Dia. cut by HOB Dia.	150. by 25mm Hob \ 125 by 50 mm Hob
Pitch Capacity	2 Mo. steel, 2.5 Mo. Brass & Cast Iron
Max. WIDTH of Gear Spur	180 mm
No. of Teeth Cut by STD. & EXTRA Spe. Grears	Number of Teeth 4 to 400 (most of Nos.)
Dia. of Hob cutter to be use	25 to 55 mm DIa& 55 mm Lenght
Work spindle BORE & NOSE	65 mm - Milling Taper ISO 50
Distance between HEAD STOCK & TAIL STOCK Centre	By Standard Tail Stock 400 mm
Hob Spindle RPM	200 to 1900 RPM in 24 Step.
Hob Spindle Bore Std. for Hob Mandril	ISO 20 Taper
HOB Mandrill Std. size available for Hob Bore	8, 10 13 & 22 mm Dia
Shifting of Hob Spindle	45 mm
FEED per REv. of work	0.025 to 2 mm
Cutter Herlix ANGLE to be set	0 to 80' Degree
Cutter Head Angle set by Vernier Scale	5 Minute
** Lead of Gear to be cut	6 to 4000 mm
** Helix Angle of Gear to be cut	0 to 75 Degree in normal
** Plunge Feed per Turn of Cutter	0.0025 to 0.05 mm
Electrical Load	3 Kw, 3 Phase
Dimension & Weight	1200 x 600 1500 mm, 1000 Kg.



STANDARD ACCESSORIES

* Hob Spindle Mandrill any one Dia. from 8, 10, 13 & 22 mm dia.

* Std. feed & index gears set of total 57. Nos.

* Complete Coolant system with swarf separating by removable Tank for cleaning.

* Hob cutter centre support with Carbide centre.

* Spanner Kit.

* Centralize pressurizes Lubrication system with filtration & total oil recovery.

* Toggle type tail stock system for easy & quick loading of job.

* Electric Control system with two Motors.

* All above accessories suitable for the hobbing “Spur Gear, Helical Gears, Worm Gears, Spline Gears, Spline Shaft, Sprockets, Pinion Gears & Pinion Shafts.

EXTRA ACCESSORIES

* Extra Gear available up to no. of teeth 180, common for index, axial Feed, Lead & Plunge Feed.

* Custom made Precision Hardened & Ground Clamping Accessories as require for jobs.

* Hob centering attachment mechanical.

* Hob centering attachment microscope.

* Extra fly wheel of Hob Spindle for heavy cutting load like plunge & Course module gear cutting.

* Sp. gears system for Single; Double & Triple start worm & fine pitch thread cutting & course module gear cutting.

* Special type hob head & heavy load Hob head for special type work.

* Differential & Lead cutting system for to cut Helical, Spiral & multi start worm with gear set 44 nos.

* Quick collate system for Work spindle for quick job clamping.

* Big size Work Spindle 65 mm Bore.

* Hydraulic Tail Stock.

* Auto Plunge system with Auto Stop for higher production of worm gear & auto engine cam shaft teeth cutting.

Note: - Accessories built with Machine against order & will be fitted at our works place only.

IMPORTANT HINTS

Machine get a very fantastic range utilize with Extra accessories. It can cut SPUR, any degree of HELICAL, SPIRAL and WORM Gears. M/c. can cut — Helix, Angle & MULTI start Worm. Also capable to cut SPLINE, THREAD; By Accessories. The m/c. to fill the vacancy of medium size Hobbing m/c. and it is very useful to current demand of small Gears of automobile, electronic industries, instrument industries and household appliances and tools Gears of any machine able material.

M/c. equipped with continues centralize LUBRICATING system for all the moving part with full oil recovery. M/c built with Coolant system with big Tank & good swarf separator system. M/c. slide fitted with harden steel guide ways and all the casting part are made of high cast iron. All the steel part are hardened, and made by High Strength steel, which ensure the m/c. very long life with Accuracy. Keeping in step with today’s technological strides, the product supplied may have slight different features.
