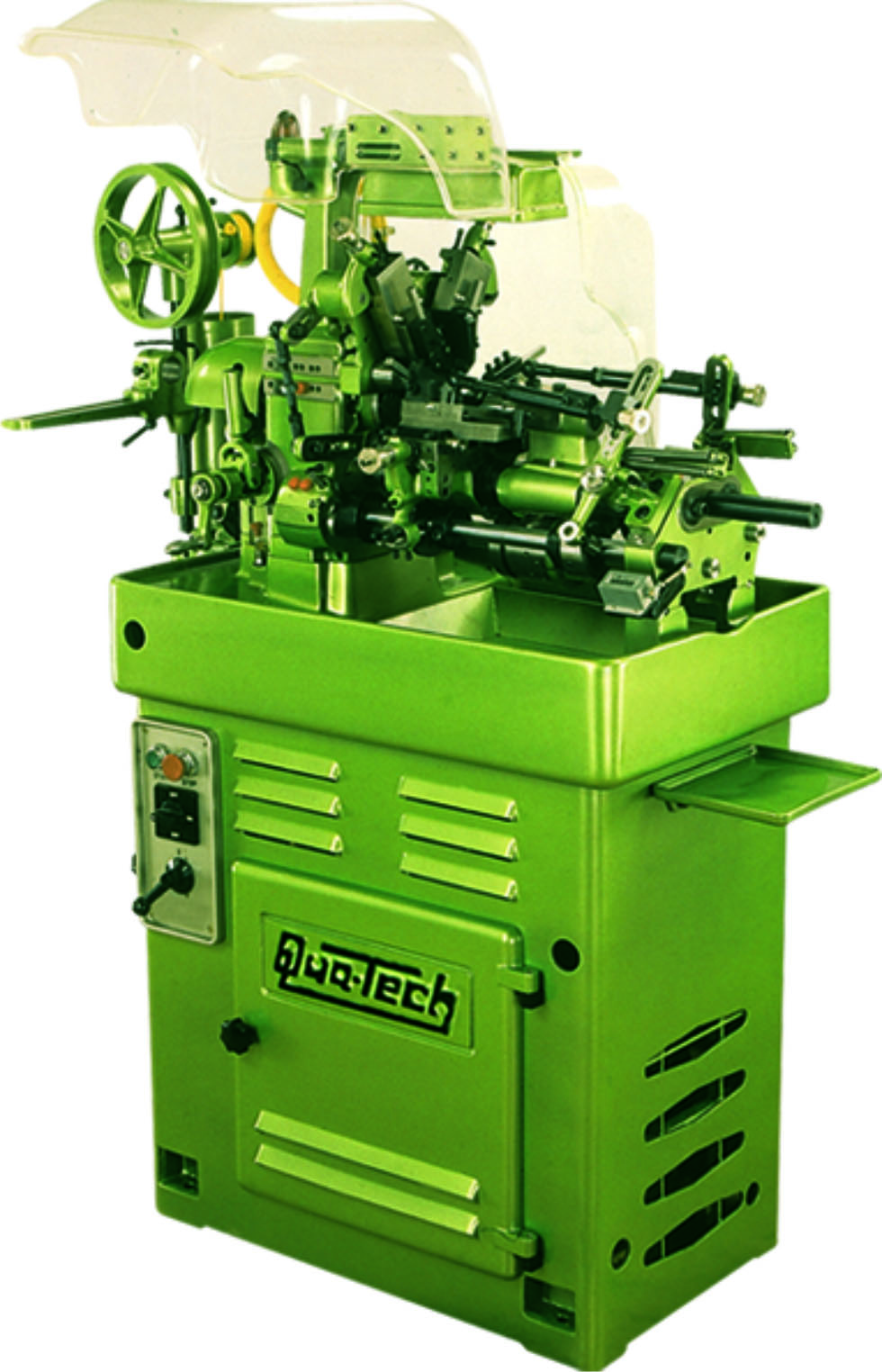

Bar Automate Model:- A-16 & A-26
| Max. bar CAPACITY | 16 mm Round, 13 mm Hex, 11 mm square A-16 MODEL 26 mm Round, 22 mm Hex, 18 mm square A-26 MODEL |
| Strock of CROSS SLIDE | 22 mm by 1:1 Cam Ratio |
| Strock of VERTICAL SLIDE (Extra Acce.) | 22 mm by 1:1 Cam Ratio |
| Tail Stock travel | 100 mm Max. |
| Tail Stock DRILLING capacity | 13 mm by collet type quill, Bigger by Sp. quill |
| FLOATING QUIL DRILL travel ( Extra Acce.) | 60 mm Max. |
| DOUBLE DRILLING attachment (Extra Acce.) | 13 mm drill Cap., 40 mm length |
| HIGH SPEED DRILLING attachment | 4 mm drill capacity |
| TWO spindle DRILLING & THREADING attachment, MOTORISDE (Extra Acce.) | 13 mm drill Cap., 8 mm threading Cap. |
| SMALL THREAD cutting attachment MOTORISED ( Extra Acce.) | 4 mm threading Cap. |
| LONG TURNING attachment (Extra Acce.) | 70 mm travel |
| SPINDLE R.P.M. | 900 to 2000 RPM, 12 step, A-16 MODEL 550 TO 4000 RPM, 12 step, A-26 MODEL |
| PRODUCTION rate | 28 to 2000 Pcs./Hour. as per job |
| POWER | 2 KW. for MAchine ( More for extra Acce.) |
| SPACE requirement | 1400 x 600 mm Excluding Bar stock pipe |
| SHIPPING Dimension & Weight | 1500 x800 x 1800 height, 1100 Kg. Approx. |
STANDARD ACCESSORIES WITH MACHINE:
* MACHINE mounted on heavy TABLE with oil basin.
* Coolant TANK.
* Coolant Pump with filter & pressure control.
* All Electrical system built with control & safety.
* Machine LAMP
* Oil guard STAND.
* Automatic Elect. SHUTTER for auto stop.
* Bar STOCK PIPE and stand with gravity PUSHER arrangement.
* Feed change GEAR Set.
* Two CROSS SLIDES.
* Std.BARSTOP with Cam.
* SPANNER SET for Machine operation.
* Single tool OPEN HOLDER for front
IMPORTANT HINTS FOR OUR PRODUCT:
This Machine is made on the lines of very successful GERMAN design. Our products always ensure INTERNATIONAL STANDARD in quality and performance. Most of CAST and STEEL parts are made from suitable alloys, HARDENED and HEAT TREATED. MAIN GUIDE BAR of the machine are thick HARD CHROME PLATED & LAPPED on Harden Material for more durability. All machining parts are made to CLOSE TOLERANCE by grinding and lapping. Guaranteed INTERCHANGIBILITY of Parts, Accessories and attachment with already installed machines of this kind are some of the virtues TO MAKE our machine a BEST BUY for you.
