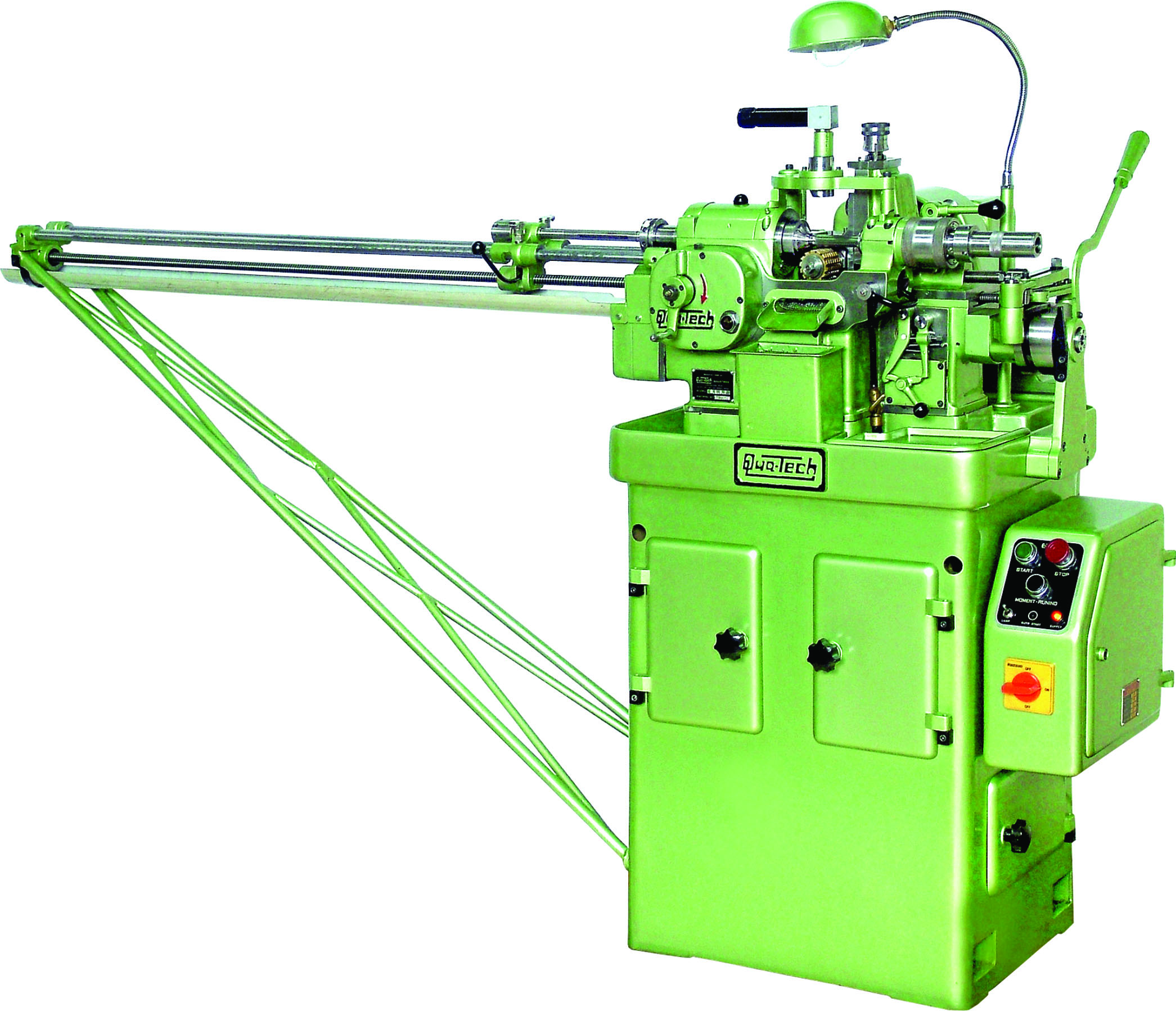

Continuous Spline Hobbing Mc. Model- SHL-2



Technical Specification :	Model SHL - 2
* Max. Spline DIA. to Hob	18 mm Gear Dia. by 24 mm Hob Dia.
PITCH Capacity	Max. 1.25 Module, 20 D.P.
Nos. of TEETH cut by Std. & Extra gear	6 to 102 Teeth all Nos. & 103 to 230 Teeth with some 'odd Nos. lapsed'.
* Work SPINDLE size	8,10,13 & 16 mm as per demand
* Hob Cutter Dimension	24 x 8 x 16, 32 x 10 x 13 x 24 mm
* HELIX ANGLE for Cutter	5 degree max. for spur gear only
* SHIFTING of Hob Spindle	15 mm Liner Movement
* REVOLUTION of Hob spindle.	310 to 1500 RPM, 16 step High speed available on request.
* FEED per Rev. of work	0.063 to 1 mm, 13 step
* Distace between HEAD STOCK & CENTER BODY	120 mm Fixed
* Distace between HEAD STOCK & TAIL STOCK Quill	Max. 115 mm, Min. 50 mm
* ELECTRICAL Load	0.8 KW., 3 Phase
Floor Space	600 x 780 mm, Approx.
Shipping Dimension & Weight	800 x 900 x 1500 mm, 650 Kg. Approx.



STANDARD ACCESSORIES:

* Heavy cast iron TABLE with Oil Reservoir, Wide oil Basin & Tool Case.

* COOLANT Pump with Drive.

* Std. Plunge CAM.

* DEBURRING Attachment.

* 20 SPANNERS Kit with Box.

* Oil Gun.

* Toggle type Centre attachment with heavy thrust bearing for job clamping.

* Built in AUTO switch to start/ stop Auto Cycle, a modern electrical PANEL for full safety & control in   steel cabinet.

* Std. set of 44 gear for FEED & INDEX suitable for Teeth cutting up to 40 Nos. & their multiple.

SPECIAL & ADDITIONAL EQUIPMENT :

* Special index change gears.

* Plunge Hobbing Cam as per job.

* Clamping Acce. as per job.

 * Special fly cutter for from teeth wheel.

* Piece counting attachment

* Big size WORK SPINDLE with manually quick collate attachment.

* Hob Spindle fly wheel.

* Magazine type automatic loading unloading attachment.





IMPORTANT HINTS :

Our Machine serves satisfactory in precision industries where small gears are used, such as Typewriter, water Meter, Electric Meter, Taxi & Rickshaw Fare Meter, Bicycle Gear-Hub, Wall clock, Time Piece, Household Grinder, Mixer, Table Fan, Telephone Gear Precision Instruments etc.
